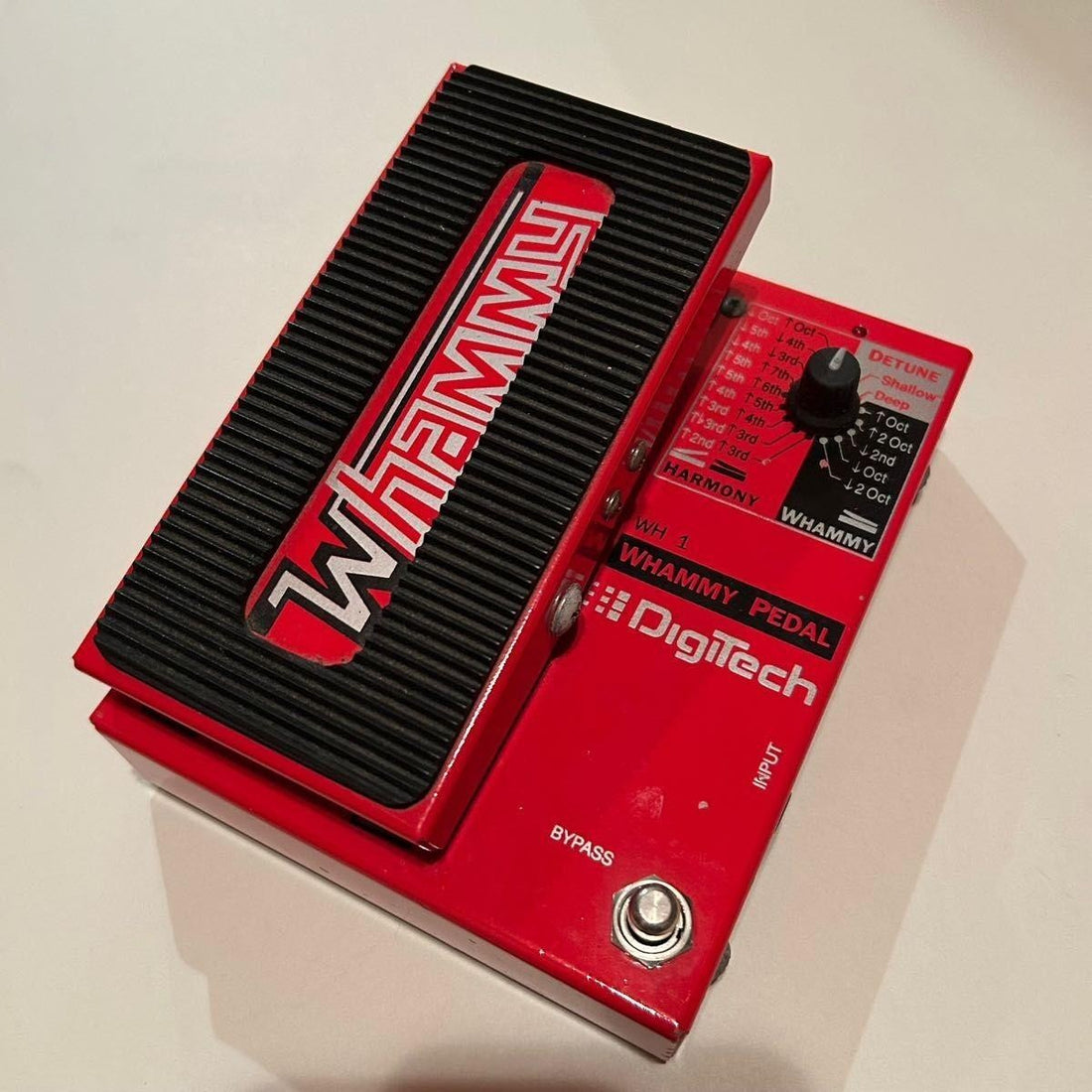

The DigiTech Whammy 1: Glitches, Saints, and the Revolution of Imperfection

The DigiTech Whammy 1 from 1989 was less a guitar pedal than a red portal into a crooked digital future. It was the first widely available pitch shifter for the masses, a device that didn’t politely process sound but cracked it open and reassembled it into something both monstrous and strangely holy. Guitarists stopped being confined to the laws of strings and frets. They stepped into a different gravity well. This little red box didn’t just become part of the gear closet, it rewrote how people thought sound itself could move.

Even now, more than thirty years later, people pay absurd prices for the originals. They are not just paying for a pedal, they are paying for imperfection frozen into hardware, for the glitches that became gospel. In an age where digital is too clean and perfect, the Whammy’s flaws are what make it irreplaceable.

Speaking of which, here lies my second Whammy-1, broken for good at last. She endured hundreds of stages, shrieking through every set like a saint of malfunction, and now she’s finally gone to wherever my dead pedals go—my closet, that graveyard of burnt circuits and half-remembered miracles.

Strange bedfellows



The Whammy was born out of an odd marriage between DigiTech in America and IVL Technologies in Canada. IVL had been founded in 1983 by psychologist Phil Scott and engineer Brian Gibson. One man studied human perception, the other taught machines to pretend they understood it. Together they pulled off a trick that shouldn’t have been possible in the late eighties: detecting pitch in about two cycles of an input signal. That was lightning-fast for the hardware of the time.

When DigiTech president John Johnson asked for an affordable pitch shifter to compete with expensive rack units, the stage was set. Nobody realized they were about to conjure a pedal that would confuse music and noise until the two became inseparable.



The broken magic inside



At its core the Whammy used IVL’s strange time-domain method of pitch shifting. Instead of lazily speeding audio up or slowing it down, which only makes voices sound like chipmunks or molasses, it crossfaded and duplicated and destroyed tiny slices of the signal.

In theory this kept time coherent. In practice it created a world of glitches. It was monophonic, so if you fed it chords it panicked. The pedal slid drunkenly between detected notes, never quite sure what it was hearing. This accident became its identity.

The specs sound normal on paper. Sixteen-bit processing, probably thirty two to forty four kilohertz sampling, and an inconvenient nine point seven five volt AC power supply. But the soul of the thing was in the way it misheard reality and spat it back with a stutter.



Saints of the red box



Tom Morello found the pedal in the early nineties while looking for ways to mimic the sirens and swoops of hip hop. By tremolo picking into the two octave up setting on Killing in the Name he created the sound of an alarm going off inside the walls of rock music.

Jonny Greenwood of Radiohead came to it in 1993. He leaned into its limitations rather than resisting them, letting it glitch and wobble its way through songs like My Iron Lung, Just, and Paranoid Android. The mistakes became part of Radiohead’s aesthetic of disintegration.

Jack White simplified the whole idea. One pawnshop Kay guitar through the Whammy set one octave down and suddenly he had the bassline to Seven Nation Army. It turned into a stadium chant, a political chant, a chant of pure muscle.

Dimebag Darrell made it howl and squeal like an animal tearing at the bars of its cage in songs like Becoming and Floods.

Even David Gilmour used it on Marooned, turning the guitar into an alien voice stretched across octaves. Matt Bellamy of Muse continues the tradition, feeding it into his war machines on tracks like Map of the Problematique.



Imperfections as holy text



The Whammy’s distinctiveness lies in its errors. Feed it chords and it buckles under the weight, warbling, sliding, collapsing. Comb filtering from delay taps. Hiccups at every pick attack. Digital aliasing and grit. A frequency ceiling around five kilohertz. Quantization noise woven into every note.

Modern pitch shifters are too smart. They erase mistakes. They give you sterile perfection. The Whammy was a butcher, not a surgeon. Its scars became part of the meal.



A culture ready for distortion



The timing was perfect. In 1989 alternative rock was foaming at the mouth for new sounds. For under three hundred dollars musicians could get effects that used to require racks of expensive gear. The Whammy gave them something raw and artificial, something to break with the past.

It became the soundtrack of the nineties. Rage Against the Machine’s debut, Radiohead’s The Bends, Pink Floyd’s Division Bell, The White Stripes’ Elephant. Its voice spread into nu metal, math rock, post rock, and even electronic crossovers. It blurred guitar into synthesizer. It gave musicians permission to leave the natural world behind.



Scarcity and failed replacements



Original Whammys now fetch between four hundred and seven hundred fifty dollars, sometimes more. Production only ran from 1989 to 1993. Expression pedals drift out of calibration. Power supplies overheat. Chips fail. Capacitors age. Repairs are expensive, sometimes impossible.

Later attempts to recreate it never quite worked. The Whammy II used the same IVL algorithm and came close. But once DigiTech parted ways with IVL the new versions were cleaner, more polyphonic, and less interesting. They erased the very mistakes that made the original valuable.

Other companies tried. Electro-Harmonix Slammi, Danelectro Shift Daddy, endless software copies. They all captured the surface idea of pitch shifting but missed the sickly heartbeat of the WH-1. The modern world was too good at doing things right.



The relic that refuses to die



Inside every Whammy beats IVL’s custom pitch tracking chip, unavailable anywhere else and irreplaceable if it fails. Memory buffers, sixteen bit converters, CMOS logic, custom encoders. A fragile ecosystem that cannot be rebuilt.

The pedal’s strange power supply architecture created both its sound and its headaches. AC input drove linear regulators that supplied positive and negative rails, a brute force method from the eighties that gave it both its distinct grit and its short temper.

Collectors know they are chasing a ghost. Every year more units die. Repairs are risky. True bypass mods reduce collector value. At some point the Whammy will vanish into memory, leaving only its artifacts on records.



The philosophy of failure



The Whammy 1 is proof that sometimes the best creations come not from chasing perfection but from embracing limitation. IVL gave it cutting edge pitch detection, but the computing power of 1989 sabotaged it in just the right ways. The result was a sound nobody could have planned.

It made artifacts into features. It made error into style. It made guitar into something that no longer obeyed the strings that gave birth to it.

Over three decades later musicians still hoard them, refusing substitutes. They know the truth. When you need a Whammy nothing else works.

This red box is a reminder that technology is not always progress. Sometimes progress is a mistake you can never repeat. Sometimes failure is the thing that lives forever.
