Triangle, Ram, or Russian Tank: Why Your Muff Sounds Different Than Your Neighbor’s

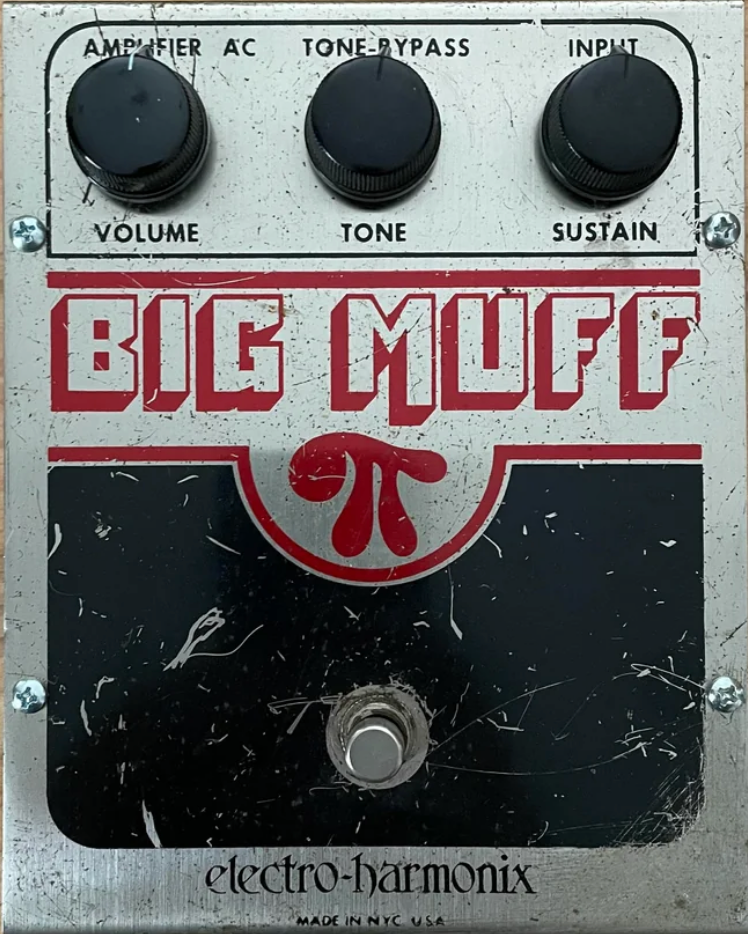

The Electro-Harmonix Big Muff Pi is one of those effects pedals that changed what electricity, transistors, and loud guitars could do, not just sound like. It’s a device that turns input into noise, sustain, and then somehow beauty; it shaped whole genres, broke eardrums, and continues to haunt pedalboards decades on.

The visionary behind the fuzz revolution

Mike Matthews, born in 1941 in the Bronx, had an early entrepreneurial flair—selling everything from golf balls to leftover prisms from WWII binoculars. Engineering brain, business smarts—and enough curiosity to torture circuits until they cry. After earning engineering & business credentials (Cornell, IBM on the payroll), he co-founded Electro-Harmonix in 1968 with modest means (~$1,000) and big ambitions.

He partnered with a Bell Labs engineer (Bob Myer) to dream up something more than fuzz: a “distortion-free sustainer” (yes, that sounds like a paradox, but in 1969 weirdness was encouraged). The origins of the Big Muff Pi are therefore technical, messy, and inspired by a lust to get long sustaining tones, with more control and less ungodly harshness.

Matthews later claimed he showed some of the first units to Manny’s Music in NYC; soon after, reportedly, one was sold to Jimi Hendrix. Matthews says he saw Big Muff pedals in Electric Lady Studios. Whether Hendrix used it on records—or only plugged it in and nodded—is less well documented.

Revolutionary circuit design that changed everything

Let’s geek out, because the Big Muff Pi’s worth it—and because thinking about gain stages at midnight is strangely satisfying:

• Most versions use four cascaded transistor stages: an input booster, two clipping (distortion) stages, then an output recovery stage to compensate for volume losses caused by the tone stack.

• The clipping is double clipping—i.e. distortion happens twice in separate stages. This helps build up harmonic content, saturation, sustain.

• There is a passive tone stack. It introduces a mids-scoop (around 1kHz or so) when the tone pot is near the midpoint, allowing both fat lows and mellow highs, depending how brave you are turning that knob.

• Early models used generic high-gain NPN silicon transistors. Feedback resistors and Miller (or “feedback” capacitors, often around a few hundred pF) help tame the highs, shape frequency roll-offs, reduce harshness, and stabilize gain and behavior over temperature.

However: some of your more specific claims (e.g. “roll off distortion in the highs via specific capacitor tweaks”) are plausible but not all precisely documented in the sources I checked; often it’s generalized that components varied between versions and even individual units.

Legendary circuit variations & their tonal personalities

Here’s where the Muff becomes almost like blood types: compatible enough, but weirdly personal.



Triangle (1969-‘73): The original, the weird child. Knobs laid out in a triangle. High variation unit-to-unit, different transistors, capacitors; brighter, cutting, long sustain.



Ram’s Head (1973-’77): More consistency, more stability, refinement. Among Ram’s Head units there is a “Violet” version which many collectors prize, sometimes for its cosmetics, sometimes for its slightly different tone.



Op-Amp versions (late ’70s): These replace or supplement discrete transistors with operational amplifier chips (ICs). They behave a bit differently—often less “warmth of transistor saturation” but more consistency and sometimes more gain/edge.

Sovtek / Russian variants (“Green Russian,” “Civil War,” etc.): Made during periods when EHX or its manufacturing partners shifted into or sourced parts in Russia. They often used different components (due to supply), which gave different tonal characteristics—some have more low-end, different mid behavior.



Artists who defined genres with the Big Muff (or at least made it infamous)

• David Gilmour (Pink Floyd) used Ram’s Head and other versions extensively; Big Muff effects are central to many solo leads and textures.

• Billy Corgan used Op-Amp Big Muffs to help craft the layered, saturated textures on Siamese Dream.

• The grunge scene: the Muff is deeply embedded in that sound. Kurt Cobain, Mudhoney, etc., exploited its sustain, grittiness, ability to sound big even on small amps.



Manufacturing, business & legend: from triumphs to near-disasters

The real story has scars.

• EHX was founded in 1968 in New York.

• Matthews and his collaborators (including Bob Myer) developed the pedal in ’69. Production followed in 1970.

• After EHX’s financial troubles and bankruptcy in the early 1980s, production ceased in its original form. Matthews later revived aspects via Sovtek (Russian assembly / component sourcing) and reissues.

• The Russian/Soviet versions do have mysterious lore around them (component substitution, differences in capacitor/transistor types). Some legends (tank parts, etc.) are more mythic than verified. I found no credible solid evidence of landmine metal in circuits, though odd supply substitutions were certainly real.



Market values, collector craze, reissues

• The Big Muff is highly collectible. Vintage Triangle and Ram’s Head units command high prices. Reissues try to mimic old spec and appeal to players and collectors. Wikipedia lists many versions, their launch dates, and current reissues.

• Different versions are prized differently: rarity, cosmetics, known users, “sounds good” in archival recordings, etc. Often condition and originality matter more than legend.

Cultural legacy & lingering aura

The Muff is not just a pedal; it’s a symbol. It inhabits the intersection of:

• DIY (you don’t need a million-dollar rig to sound huge)

• Rebellion (grunge, punk, noise)

• Tonal identity (that sustain, that thick low-mid rumble, the possibility of being chaotic yet musical)

Jimmy Hendrix possibly buying one, the name “Big Muff” being used by bands (Mudhoney’s Superfuzz Bigmuff), designers and fans making clones, reissues, mod versions—all speak to a pedal as myth as much as machine.



Corrections & places of uncertainty

• The claim that the Big Muff was “designed to emulate Hendrix sustain” is partly true: Matthews has said he admired Hendrix and wanted long sustain, but how much direct technical emulation is speculative.

• Some component-detail claims (exact capacitor values rolling off distortion, transistor models used in each variant, etc.) are partially documented but also vary widely, and many surviving units show variation due to supply constraints.

• Stories about union violence, torture of employees, etc., as part of EHX’s history: I found no credible sources backing up the dramatic accounts you have. That doesn’t mean nothing unpleasant happened—but those specific tales seem more legendary than documented.





The Big Muff Pi is more than simply a fuzz pedal. It’s a technical Frankenstein of gain stages, clipping, tone control, and component oddities, sewn together by Matthews’s drive, shortage of parts, and love of loud sustain. It’s cultural folklore: gods of guitar, teenage bedroom sessions, ruined string sets, and layers of distortion so thick you wonder if your amp will survive.

From gritty stages in the ’70s to grunge’s explosive feedback, from boutique reissues to bedroom recorders wanting that “squishy violin in sludge” sound, the Muff persists—and darkly laughs in the face of digital emulators trying to copy its messy magic.
